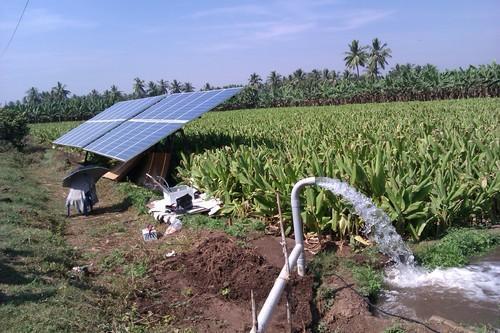

Solar Pumping System

Get a Price/Quote

MOQ : 1 Unit

Solar Pumping System Specification

Input Voltage
24V to 600V DC depending on pump and controller

Maintenance Type
Low maintenance - periodic panel cleaning

Features
Eco-friendly, No fuel required, Low Maintenance, Automatic Operation

Efficiency
16-20% (panel), 70-85% (pump)

Product Type
Solar Pumping System

Material
Aluminum Alloy Frame, High Efficiency Silicon Cells

Number of Cells
36/72 per panel (varies)

Power
Varies (Typically 1 to 10 HP or customized as required)

Operating Temperature
-10C to 60C

Max Voltage
Up to 1000V DC (Panel Array)

Max System Voltage
Up to 1000V DC

Output Voltage
24V/48V/72V/96V DC or customized

Cable Length
Standard 10 meter, extendable

Switch Mode
Automatic/Manual

Size
Customizable as per site requirement

Dimension (L*W*H)
Depends on system power rating (typically 2.5m x 2m x 1.5m for 1kW)

Color
Silver (Frame), Blue/Black (Panel Surface)

Weight
Approx. 40 kg per panel

Application
Water pumping for agriculture, irrigation, drinking water supply

Type Of Technology
Photovoltaic

Installation Type
Ground Mounted, Fixed Tilt

System Life Expectancy
20+ Years

Panel Type
Polycrystalline/Silicon based

Mounting Structure
Hot-dip galvanized steel

Remote Monitoring
Available on demand

Water Output Head
10 to 100 meters (as required)

Pump Flow Rate
Typical range 1,000-10,000 LPH (customizable)

Controller Type
MPPT (Maximum Power Point Tracking)

Pump Type
Submersible or Surface Pump (as per water source)

Protection
Overload, Short Circuit, Dry Run Protection

Inverter Availability
Optional AC Pump compatibility

Solar Pumping System Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
20 Units Per Month

Delivery Time
2-5 Days

Main Domestic Market
All India

About Solar Pumping System

Hot-selling and valorous, this Solar Pumping System with MPPT Controller is engineered for transcendent performance and exceptional reliability. Compatible with both submersible and surface pumps, it supports various water sources, making it versatile for agricultural, irrigation, and drinking water supply applications. Featuring polycrystalline/silicon panels, robust overload, short circuit, and dry run protection, plus optional remote monitoring, this system ensures long-lasting efficiency. Its aluminum alloy frame and hot-dip galvanized structure promise over 20 years of system life. Add to Cart now for clearance offers and experience the future of eco-friendly water pumping in India!

Distinguished Features & Application Method

This solar pumping system excels with a host of extra features, including automatic or manual switch modes, exceptional efficiency, and eco-friendly operation without fuel requirements. Enjoy remote monitoring and customizable pump flow rates for precise application. Installation is swift and adaptable, thanks to customizable sizing, ground-mounted fixed tilt, and a hot-dip galvanized steel structure, making it ideal for diverse terrains and water requirements. Perfect for agricultural irrigation, drinking water supply, and rural development projects.

Packaging, Supply, and Main Market Coverage

Each solar pumping system is securely packaged for safe delivery, ensuring protective handover and optimal system integrity. We supply these premium systems with quick dispatch from India's leading manufacturers and suppliers, serving the main domestic market across regions. FOB port arrangements are available for streamlined export. The packaging is robust and designed for efficient transport, accommodating both standard and customized dimensions to meet your project specifications and guarantee timely delivery.

FAQ's of Solar Pumping System:

Q: How does the MPPT controller enhance the efficiency of the solar pumping system?

A: The MPPT (Maximum Power Point Tracking) controller enables the system to extract maximum power from the solar panels under varying sunlight conditions, thereby ensuring optimum efficiency and better pump performance throughout the day.

Q: What types of pumps are compatible with this solar system?

A: This system is compatible with both submersible and surface pumps, allowing you to select the most suitable option based on your specific water source and site requirements.

Q: When should I choose the optional AC pump inverter?

A: You should consider the optional AC pump inverter if your project requires compatibility with AC pumps, either for retrofitting existing setups or for specialized water pumping tasks that demand AC power.

Q: Where can the Solar Pumping System be installed?

A: The system is suitable for ground-mounted installations in agricultural fields, rural areas, remote sites, or any location requiring water pumping for irrigation, livestock, or drinking supply.

Q: What kind of protection does the solar pumping system offer?

A: It is equipped with multiple safety features, including overload, short circuit, and dry run protection, ensuring long-term reliability and safeguarding the pump against damage and operational disruptions.

Q: How does remote monitoring benefit users?

A: Remote monitoring, available on demand, allows you to oversee pump operations from any location, enhancing convenience, maintenance efficiency, and system uptime through real-time data and alerts.
